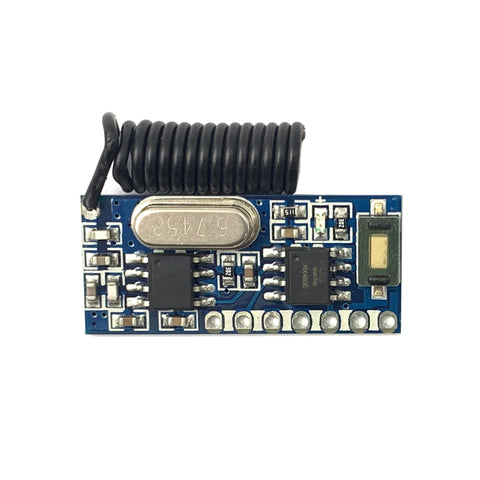

QIACHIP RX480E-4 4CH without Pin 4 Channel RF Wireless receiver Module ( without Pin) 433Mhz 1527 Learning Encoding Module For Light Relay Motor
Regular price
$3.99
Video Demo:
READ THIS:
The Receiver is encoded with EV1527 and are ONLY compatible with Transmitter encoded with EV1527
Package Included:
Receiver module (RX480E-4) without pin
Qiachip RX480E-4 Specifications:
[Receiver module ] Product Model: RX480E-4WCZDTX
Working Voltage : DC3.3~5V
Quiescent Current : ≤5mA
Output current : 10 mA
Working Frequency: 433MHz( Others can be customized )
Receive Sensitivity: -108dB
Receive Distance: 15 meters above
Frequency band: ±0.2MHz
Working Temperature : -25~75
Pairing Instructions:
- Delete existing data: Press learning button 8 times. Response: LED flashes 7 times.
-
Learning remote code: press learning key once, twice or three times (see below).LED turns on: learning mode is active. Press any button of the remote control.LED indicator flashes three times: learning successfully completed.
- Test: after the above operation , the receiver board can be controlled by the remote control.
- Press once: Inching mode (Momentary Mode)
- Press twice: self-Lock Mode (Toggle-Mode of the 4 Channels)
- Press three times: interlocked mode (selected channel active and be cleared, if another channel becomes active)
GND : ground or negative pole
+V : DC3.3~5V input
D0: Data output
D1: Data output
D2: Data output
D3: Data output
VT: Output
