Qiachip KR1204B+2×KT19-4 remote control switch | 12V 4CH | Learning cord remote control | 433Mhz

Package included:

2 x Remote control | Transmitted Module (KT19-4)

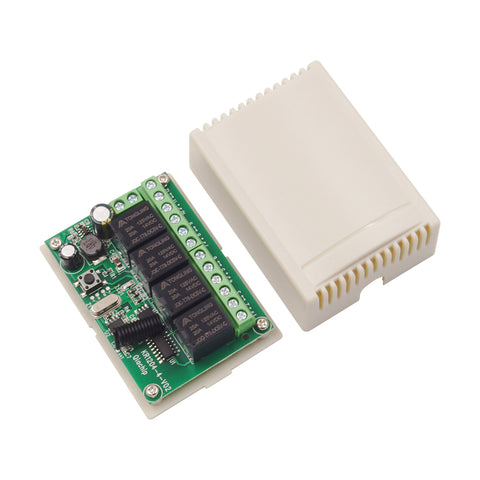

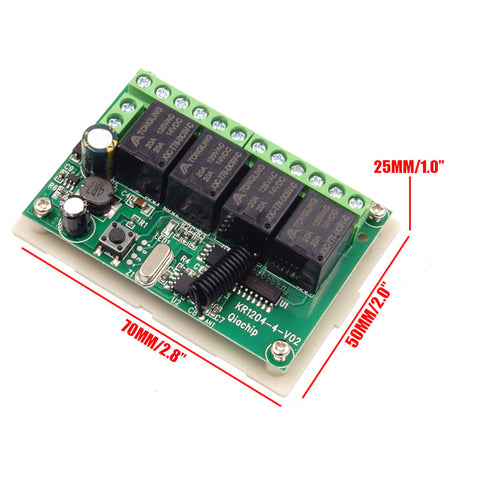

1 x Remote control | Receiver Module (KR1204B)

Specifications:

Model:

Input Power:DC6V -30V
RF Frequency: 433Mhz
Standby Current:5mA
Match Mode：1527 code
Receiver sensitivity: -104dbm
Remote Distance: 20m
Operation mode:Momentary Mode,Toggle Mode,Toggle Mode

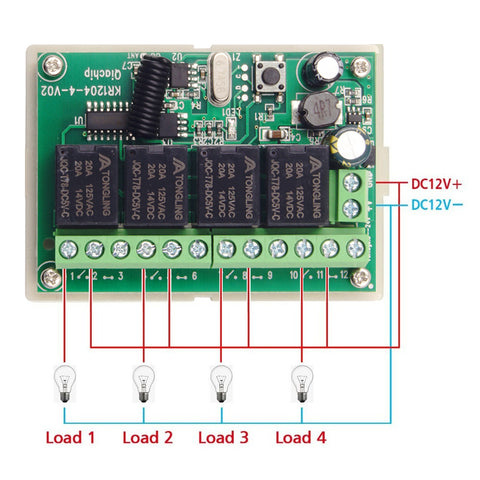

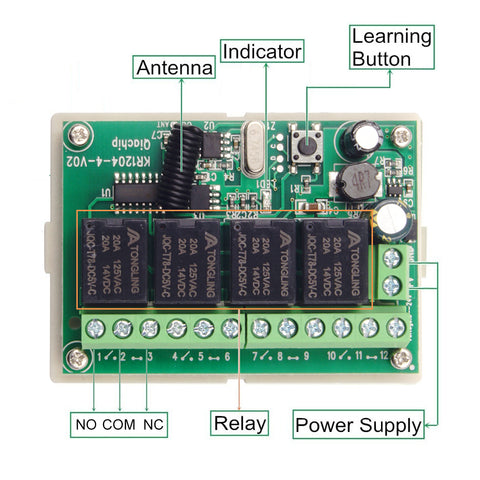

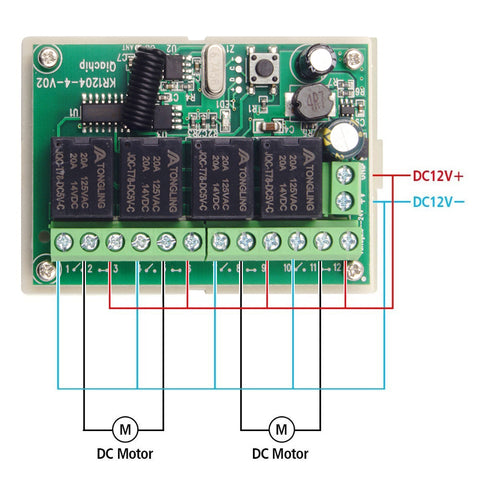

Output : NO,COM ,NC
Modulation mode: ASK
Working temperature:-15 ~ +75°C

Instruction:

Clearing All Stored Transmitters:
Push the learning button on the receiver 8 times , and the codes will be cleared .
After clearing the stored transmitters, all transmitters will need to be relearned by the receiver.

1. Learning the transmitter :(momentary Mode)

Press the learning key on the receiver 1 times, Wait for a moment , the LED will be off , it comes into

learning state .
Press the remote button , LED indicator on the receiver board will flash then come off .After 3 seconds, the
LED indicator will be on again , learning successfully .

2.Learning the transmitter : ( Toggle Mode )

Press the learning key on the receiver 2 times, Wait for a moment , the LED will be off , it comes into

learning state .
Press the remote button , LED indicator on the receiver board will flash then come off .
After 3 seconds, the LED indicator will be on again , learning successfully .

3.Learning the transmitter : ( Latched Mode )
Note: When you choose for Interlocking mode , in order to learn more remote control , you need to learn two different button , the first time learn is for “ON”, the second time learnt for “OFF”.

For example : button A = ON , button B = OFF
Push the learning key on the receiver 3 times , the LED (on the Receiver)will blink 3 times. When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times . Push the remote button B, Led flash for 3 times . After 3 seconds , the LED indicator will be off ,Learning to succeed.
