KR3001A RF 433MHz Wireless remote control switch DC5V 9V 12V 24V 30V 48V 60V 1 CH 10A Relay COM NO NC dry contact Can be used for garage door, access control, sliding access control machine, magnetic access control machine, electromagnetic locks

Specifications Of The Receiver:

Model Number : KR3001A-4
RF Working Mode: Superheterodyne Reception
Modulation Mode: ASK

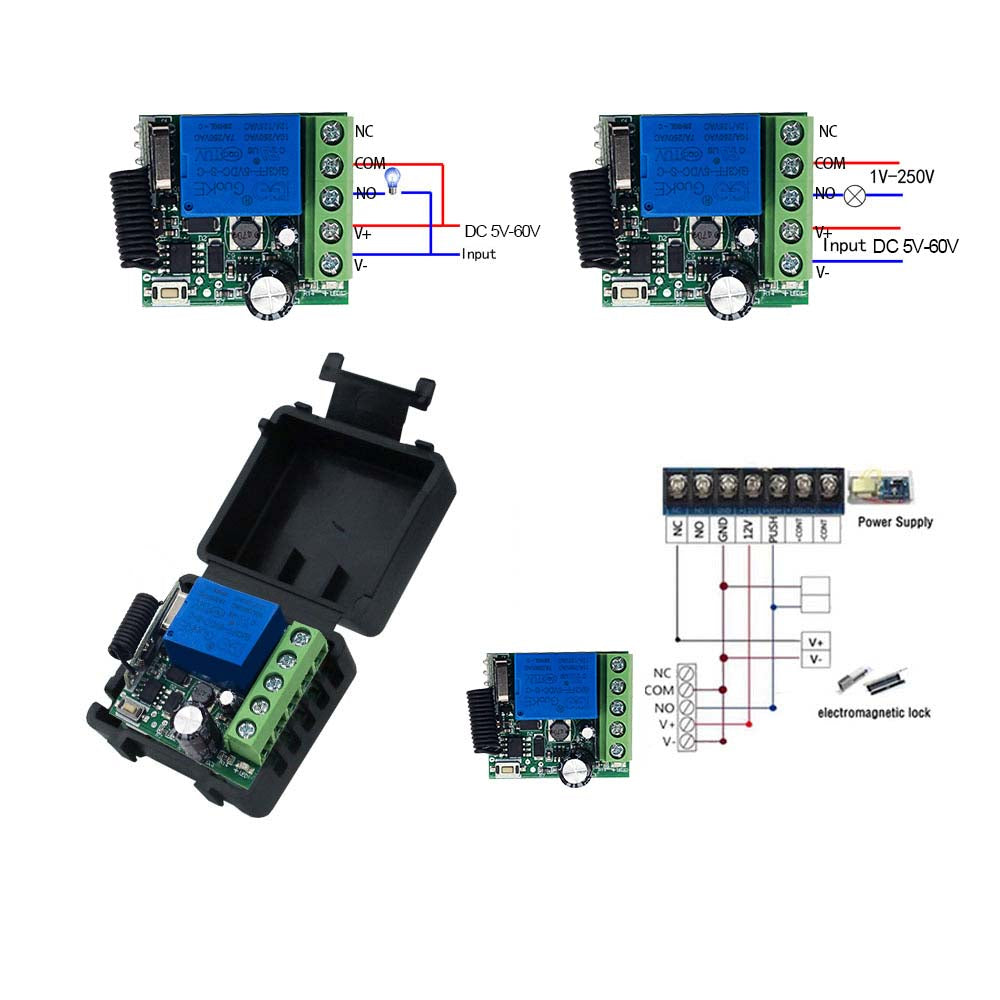

Out put: DRY CONTACT NO COM NC
Input Voltage: DC 5 ~ 60V
RF Frequency: 433MHz
Quiescent Current: 5mA
Receiving Sensitivity: >97dbm
Theoretical remote control distance:>80-100m(The actual distance has losses depending on the application method)

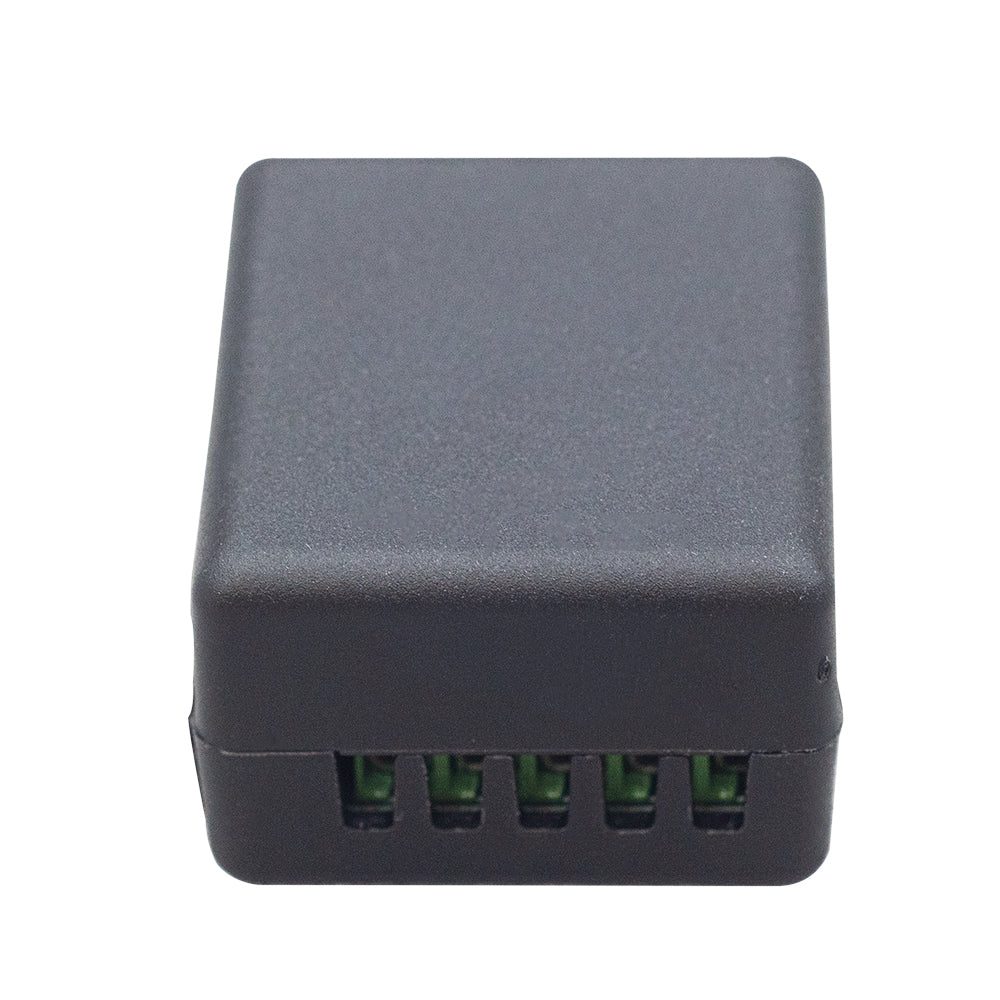

Wired Connection Way: Fixed Wiring Pillar.
Decoding Mode:MCU Software Decoding.
Working Mode:Momentary, Toggle, Interlocked Mode Latching Time delay (5s ,10s ,15s )

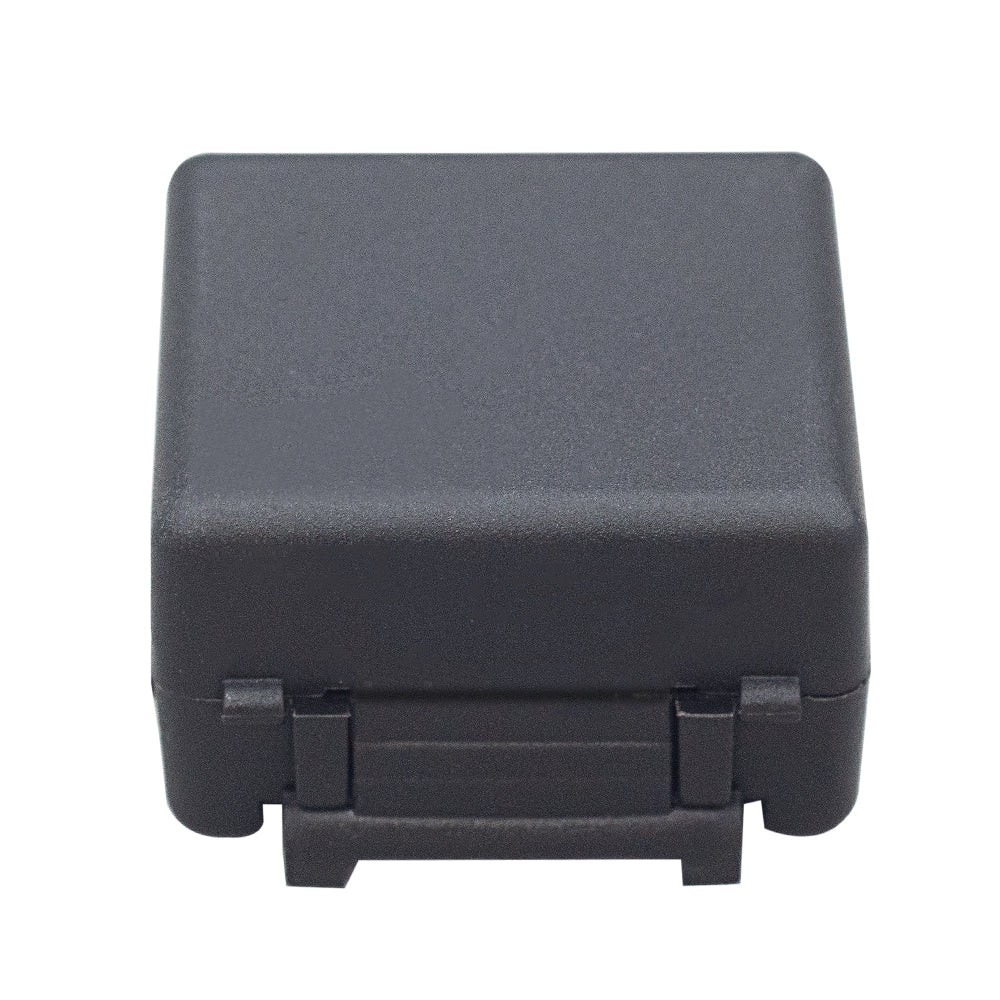

All options include black housing.
