QIACHIP KR2201F universal 110V 220V 10A Circuit Breaker micro receiver 1channel remote control switches rf 433 Suitable for lighting chandeliers ceiling lights LED lights

Regular price $5.40 Sale price $5.99 Unit price per

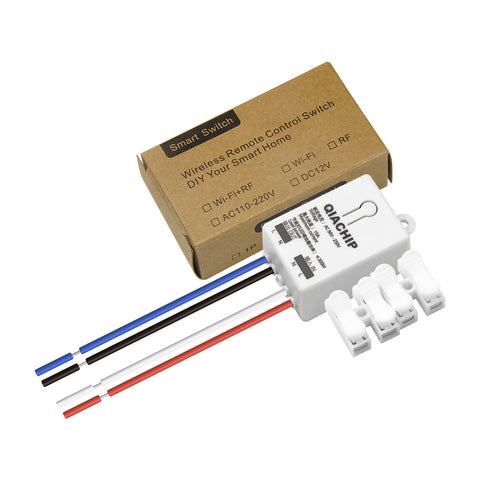

Package Included:

RF Remote Control switch (KR2201F)     *1
User manual                                 *1
Package                             *1




Product Specifications

Power : AC90-250V 50/60Hz

Support remote type:Learning code (EV1527)

Max. Load : 10A

Max Load Power:Resistive load: 2200W (AC220V)

Incandescent lamp: 2200W (AC220V)

Inductive load: 500W (AC220V)

Capacitive load: 200W (AC220V)

Energy-saving lamp: 300W (AC220V)

RF working frequency: 433MHz

RF Remote control distance: open area greater than 25 meterSmall size and easy to install RF receiver.
The remote relay adopts RF technology, with long remote control distance and stable signal.The receiving module provides high signal sensitivity at lower cost and resist interference for excellent stability.The rf relay adopts non-directional wireless encoding technology, allowing independent control without mutual interference.

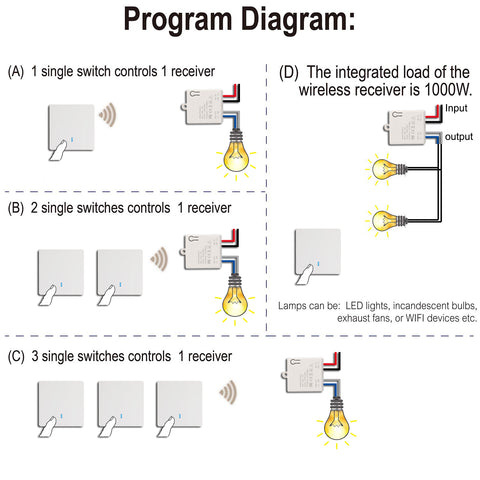

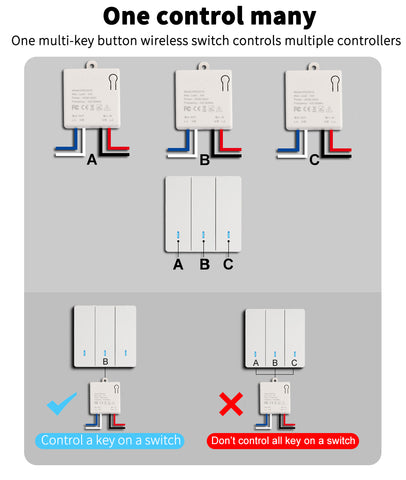

The programmable rf transmitter and receivers can be flexibly configured in quantity and in operating modes.
It is widely used in industrial control and security fields, such as light, motor, remote controller, wireless security alarm, wireless door alarm, wireless controller.





*Please dont install with electricity

* Note: RF working modes need to be implemented with QIACHIP brand remote control (transmitter) and controller (receiver / wireless remote control switch). There is no guarantee that remote controls from other brands will work properly.



Manual switch mode description

Without the remote control, pressing the setting button "smart switch" will turn it on, and pressing the setting button "smart switch" will turn it off.



Latch Mode Setting Description (Press the remote control to turn it on, then press it to turn it off. This mode is suitable for 1 remote control button to control 1 "smart switch")

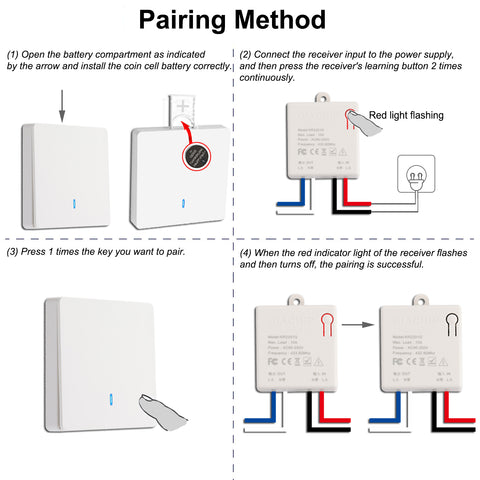

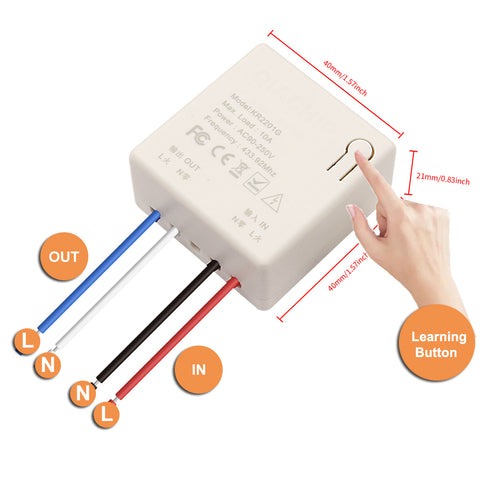

Setting method: Press the setting button on the "smart switch" twice, the red indicator light flashes and then lights up; press the button that needs to be paired on the remote control, when the red indicator light flashes, it goes out, and the latch mode setting is successful.



Toggle mode setting Description (The same button, press and hold to open, release to close.)

Click the Settings button on the receiver once, wait for the LED to light up, and enter the setting state; then click the button (such as button A) on the remote control once, when the indicator light on the receiver flashes and goes out, the toggle mode setting is successful.



Jog mode setting Description (The same key, press and hold to open, release to close.)

Setting method: Press the code matching button on the "smart switch" 4 times, the red indicator light flashes and lights up; press the button that needs to be paired on the remote control, when the red indicator light flashes, it goes out, and the self-locking mode is set successfully.

Reset:

After pressing the receiver's learning button 8 times, the receiver clears all remote control data in its memory. When the receiver's LED flashes, the reset function is complete.
