Application environment:

  Remote control switch,motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

Specifications Of The Receiver:

Model Number:KR1201min-V3.0
Working Voltage: DC 3.7V-24V
Maximum Load: 2A.
Static Current: 3.6mA-7mA
Working Frequency: 433MHz.
Reception Sensitivity: ≥ -107dBm.
Modulation Mode:ASK (superheterodyne).
Number Of Stored Remote Controls: ≤ 10.

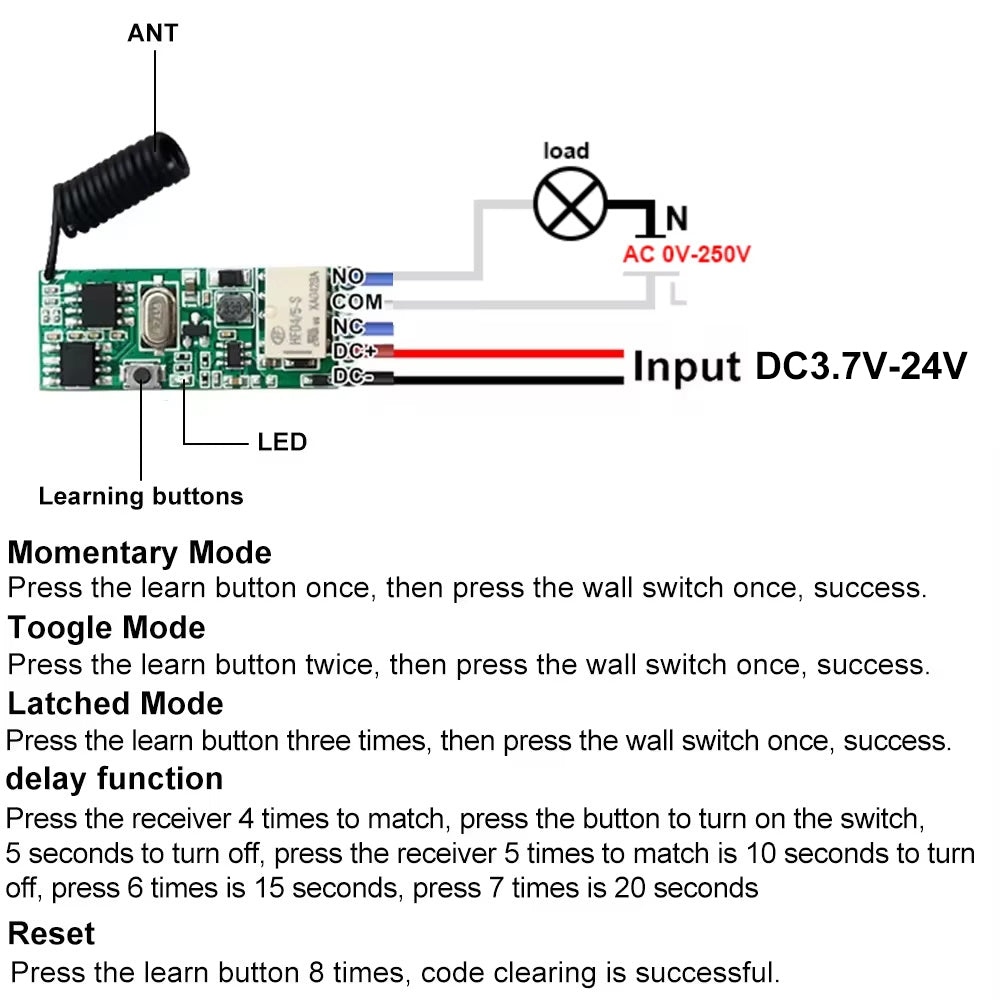

Working Mode: Momentary, Toggle, Latching Mode.
Learning Style: Learning Button.
Working Temperature: -40 degrees 80 degrees.

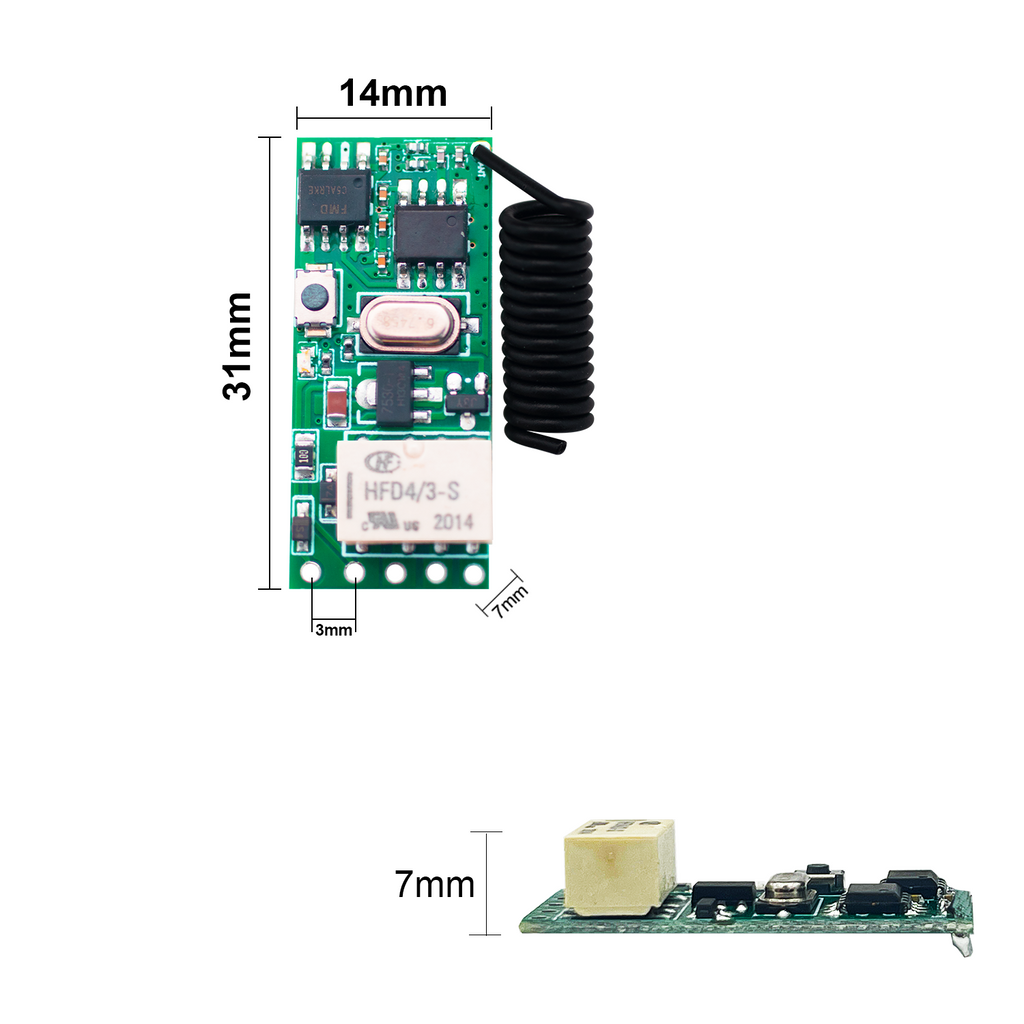

Appearance Size: 31mmx 14mm x 7mm (length × width × high)

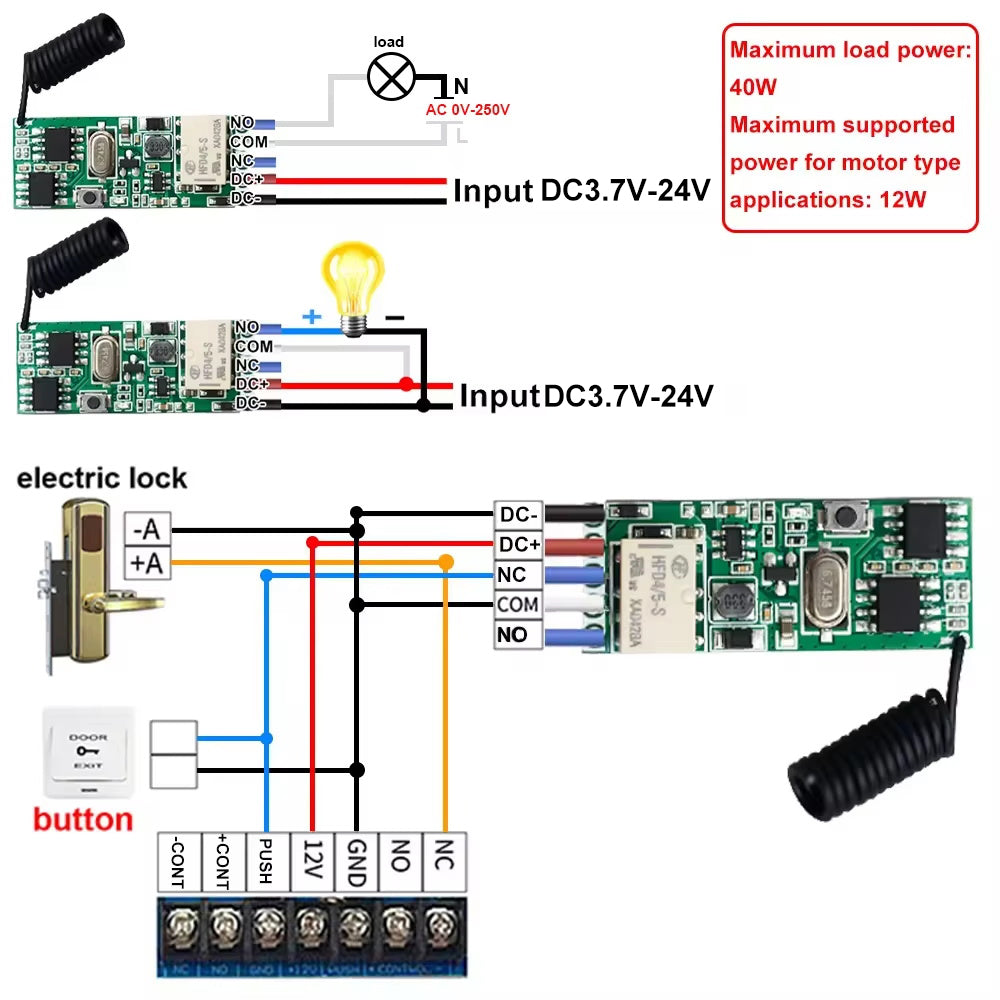

Maximum load power:40W

Maximum supportedpower for motor type applications: 12W
