User Manual

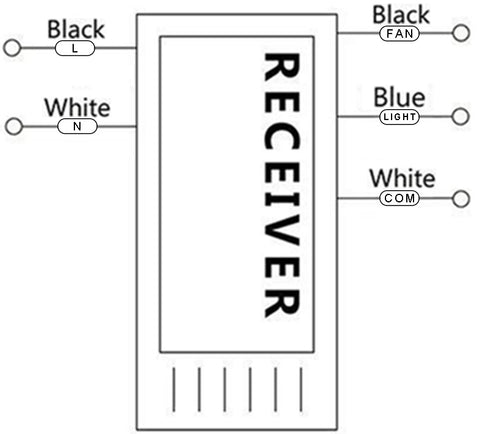

- Receiver Functions(Right Diagram)
|
AC IN L (Left Black) |
Input Live wire |
|
AC IN N (Left White) |
Input Neutral wire |
|
FAN (Right Black) |
Output Fan Live wire (Fan) |
|
LIGHT (Right Blue) |
Output Light Live wire (Light) |
|
COM (Right White) |
Output Neutral wire (Light & Fan Common connection) |
- Remote Control Functions (Right Diagram)
|
① LED Light |
Indicator LED Light |
|
② LOW/MED/HI |
Minimum, Medium, Maximum Fan speed |
|
③ STOP |
Stops Fan |
|
④ 2H/4H/8H/1H |
Fan & Light Timer |
|
⑤ Light ON/OFF |
Switch Light from on & off |
- Installation
- Wiring diagram
Specifications
|
Applications |
Light/Fan |
|
Operating Voltage |
110V/220V Depending on model |
|
Max Load Power |
<300W Ceiling Fan / <200W LED Light |
|
Standby Power consumption |
<0.5 W |
|
Working temperature |
-20℃~80℃ |
|
Control Method |
Remote control |
|
Wiring Method |
Live Wire & Neutral Wire |

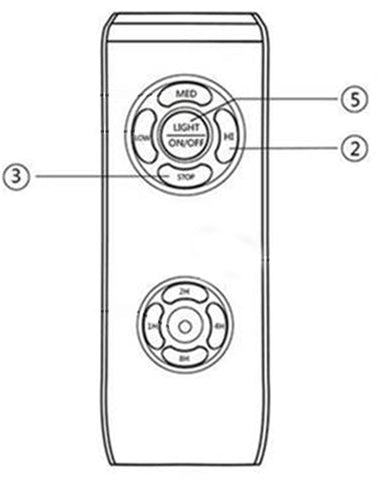

- F&Q
Q: If you remote cannot control the receiver.
A: 1.Please turn off the power.
- Turn on the power again.
- Press and hold “LIGHT” （⑤）and “HI”（②） at the same
time within 5 seconds until the receiver beeps 3 times.
Q: Turn off the beep of the controller.
A: 1. Turn off the power. Then Turn on the power.
- Press and hold “STOP”（③） at the same time within 5 seconds until the receiver beeps 3 times.
